DP Disc Brake Chamber

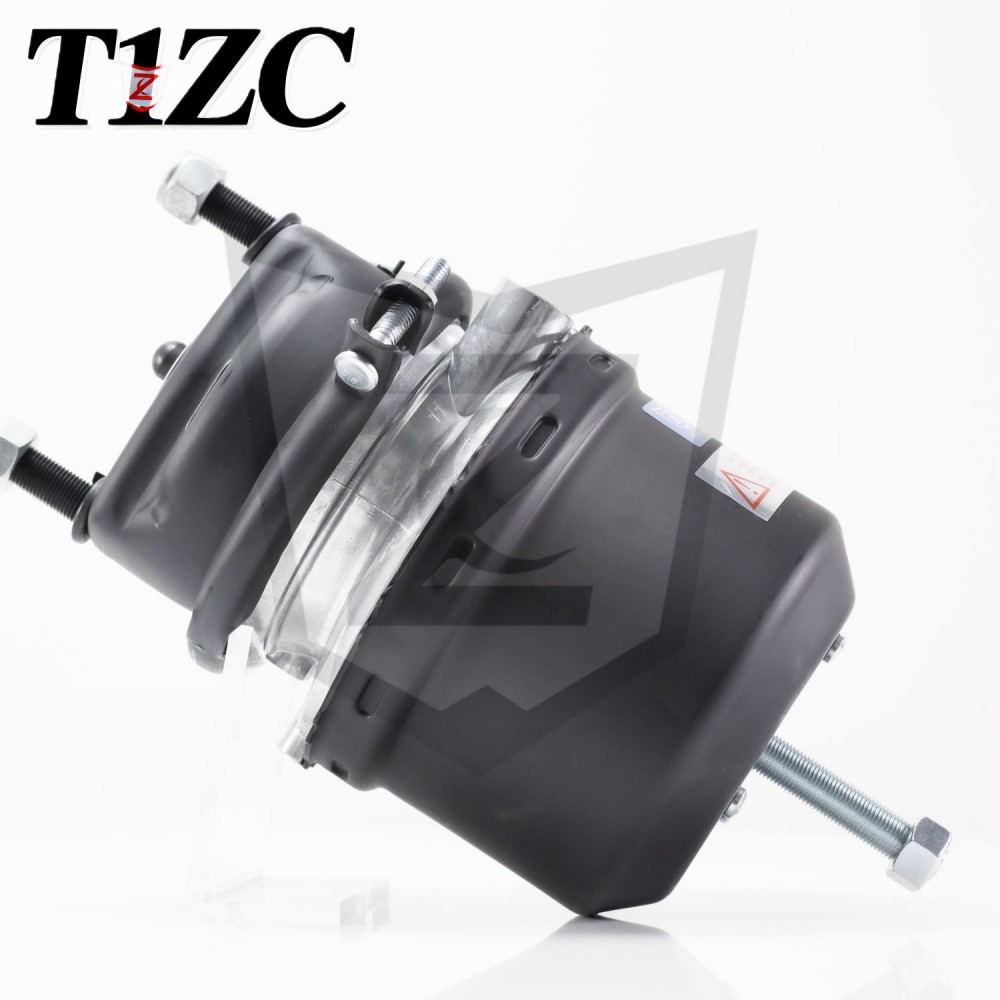

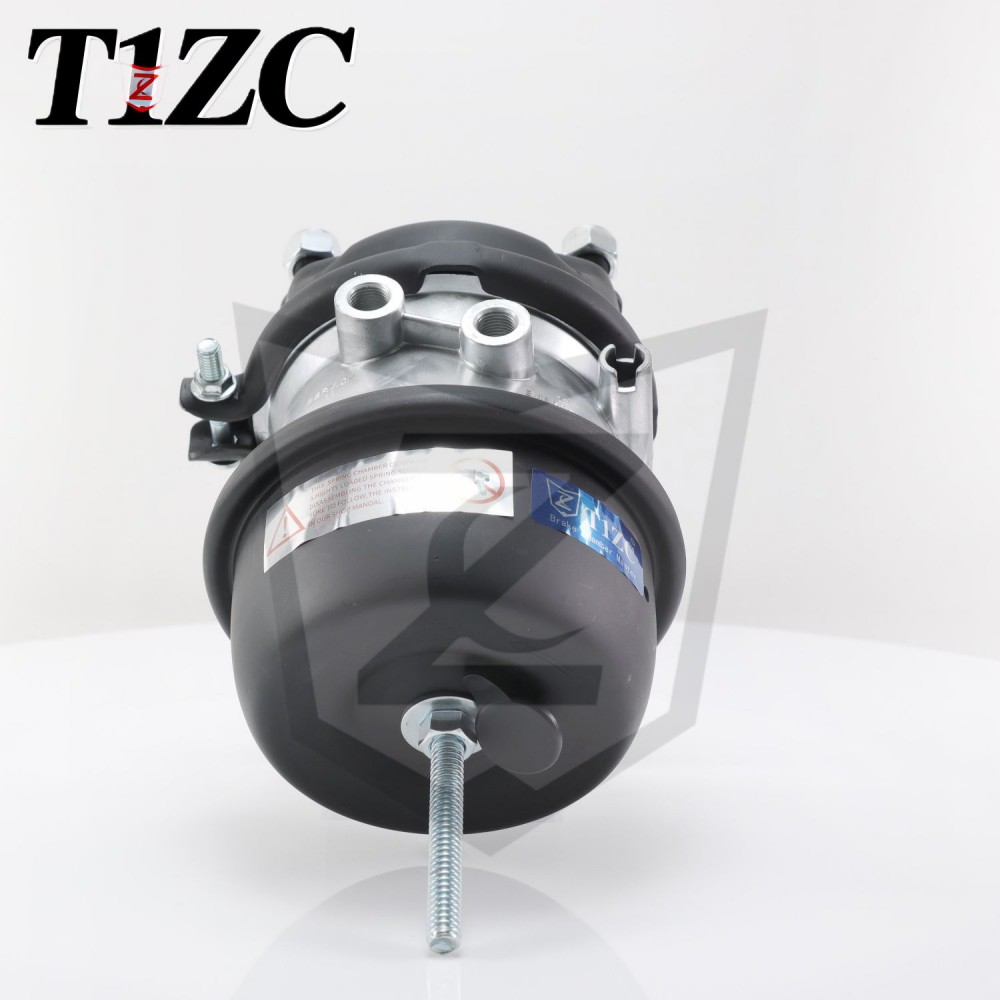

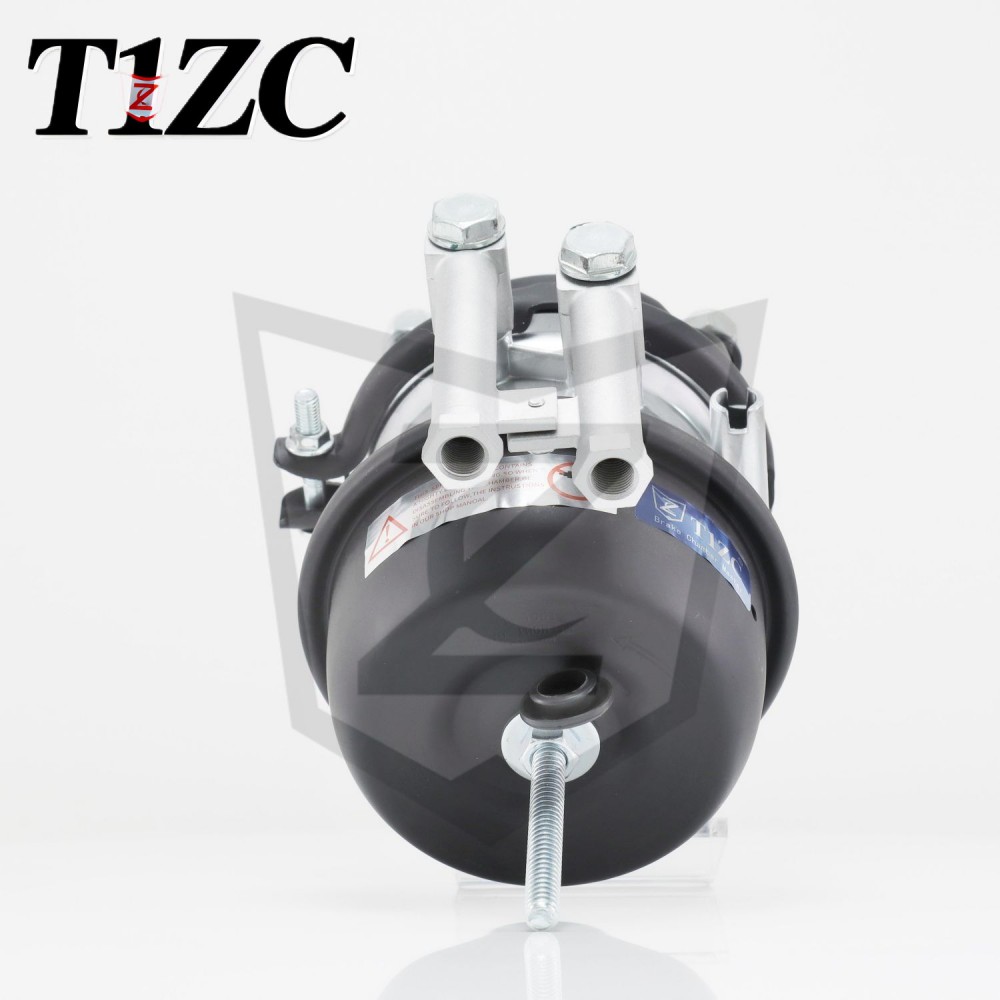

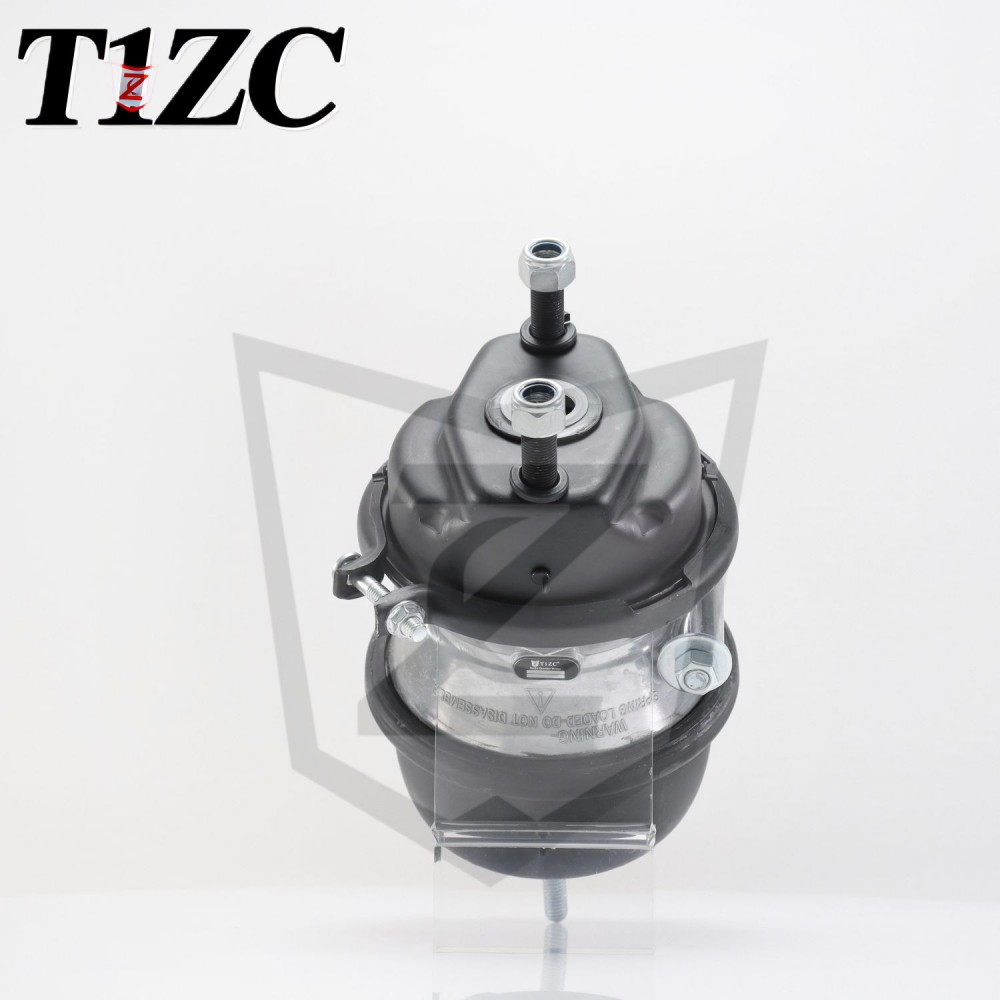

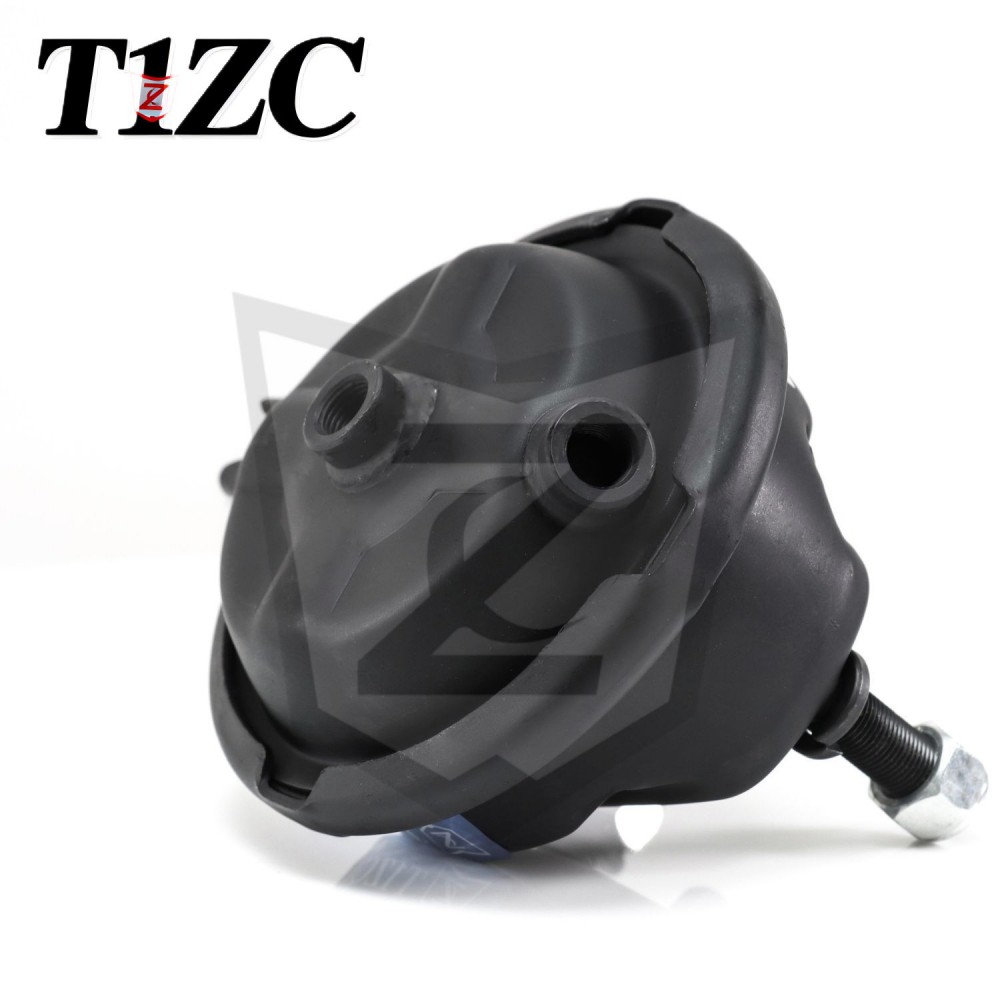

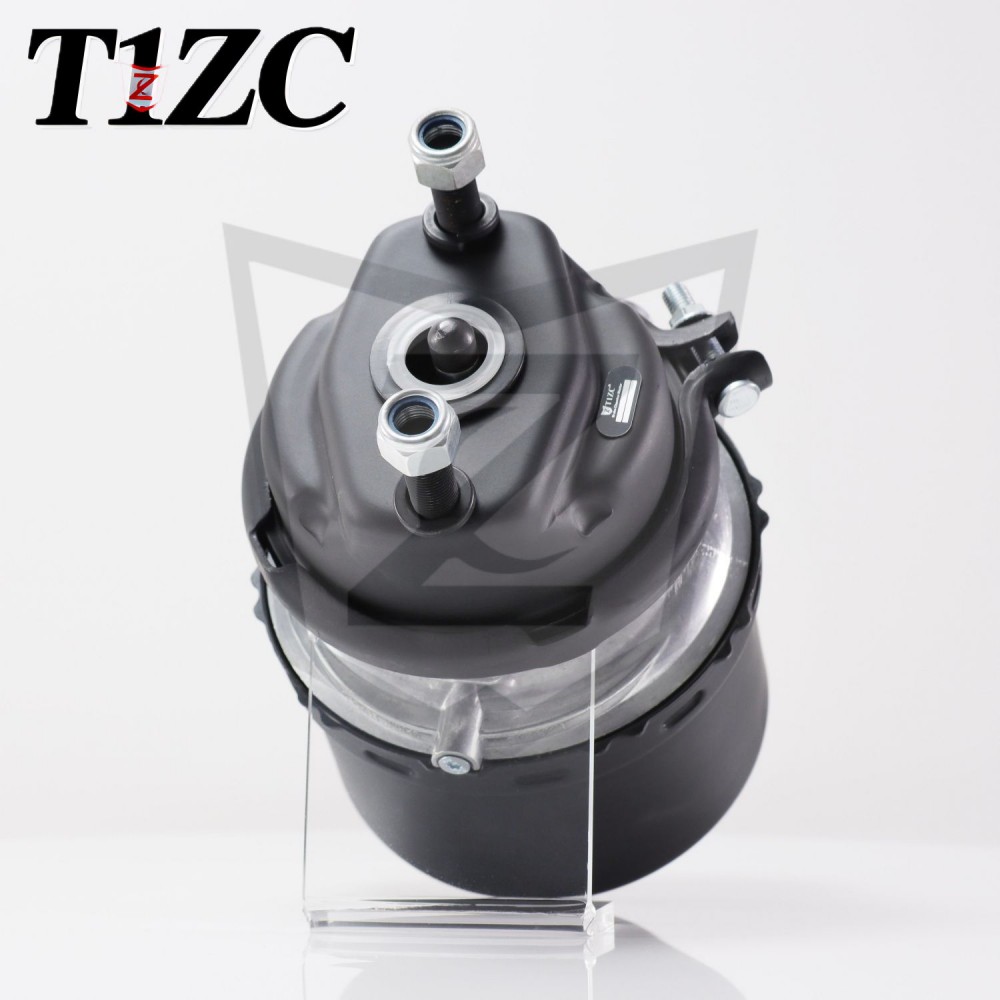

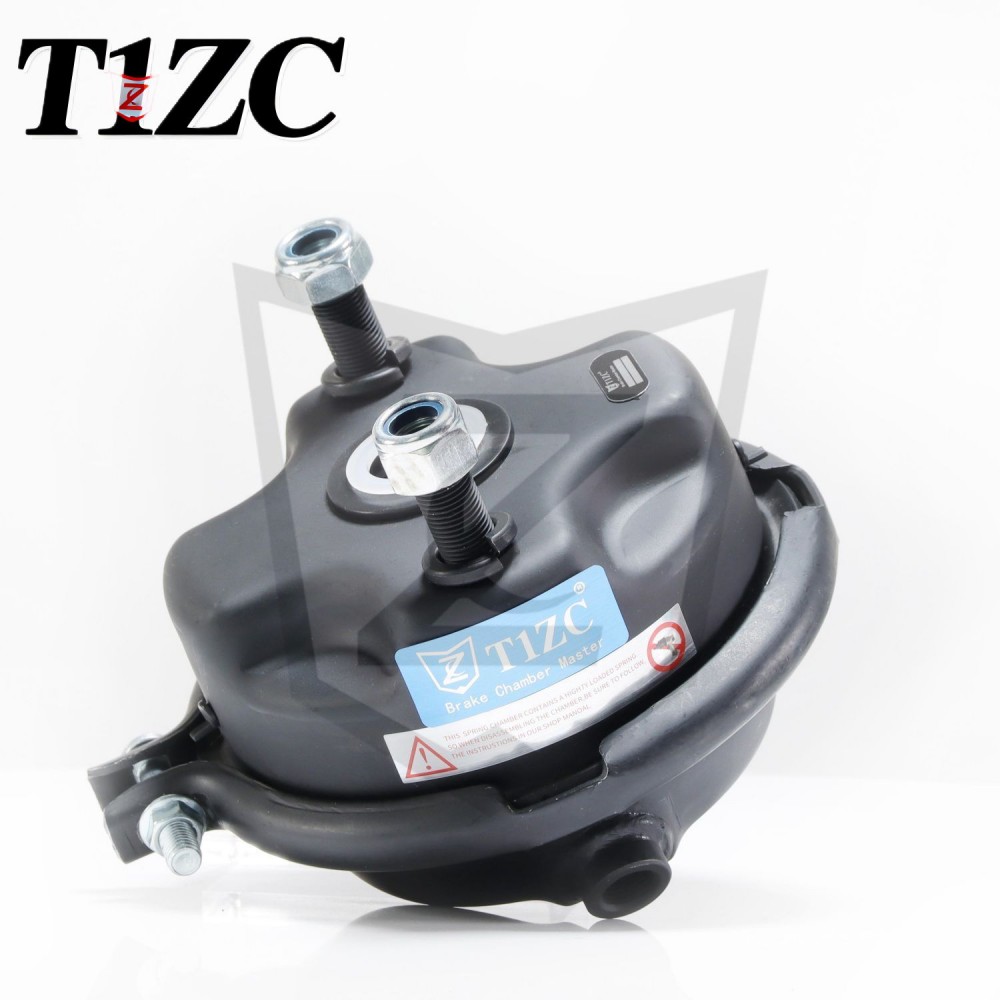

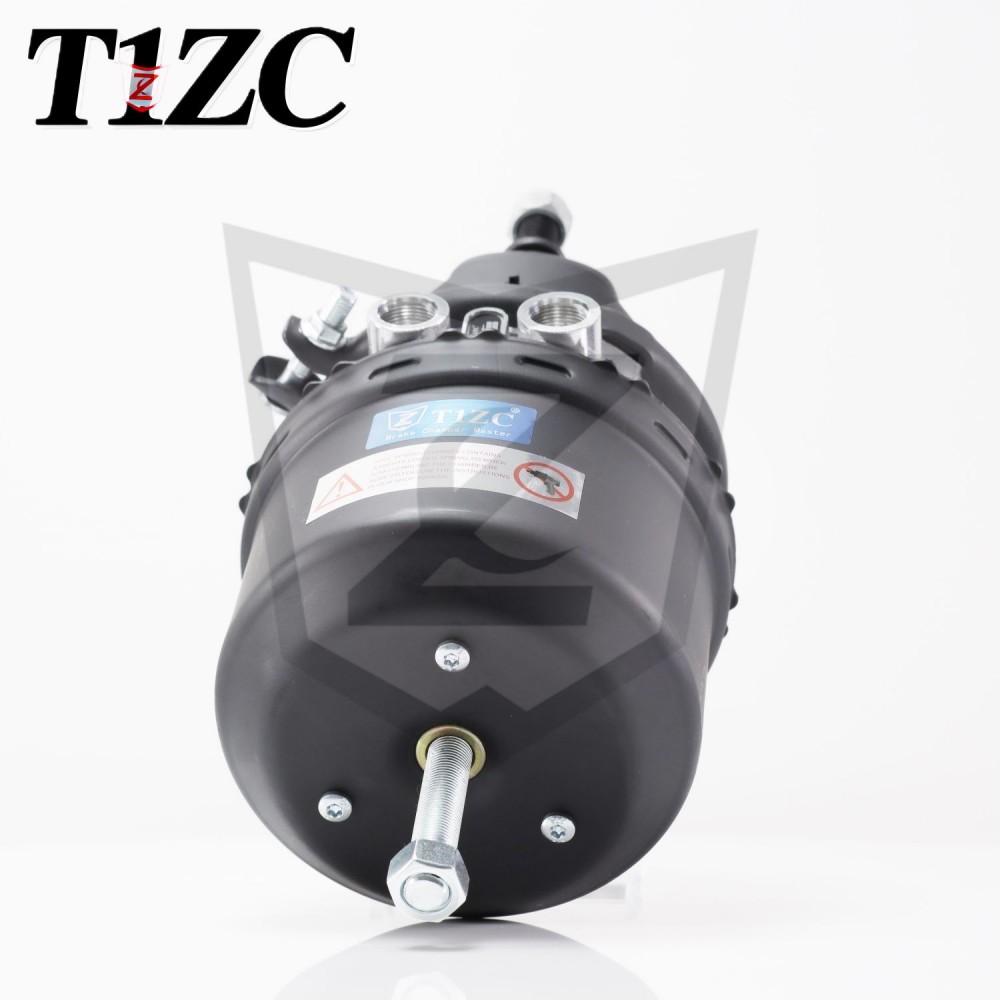

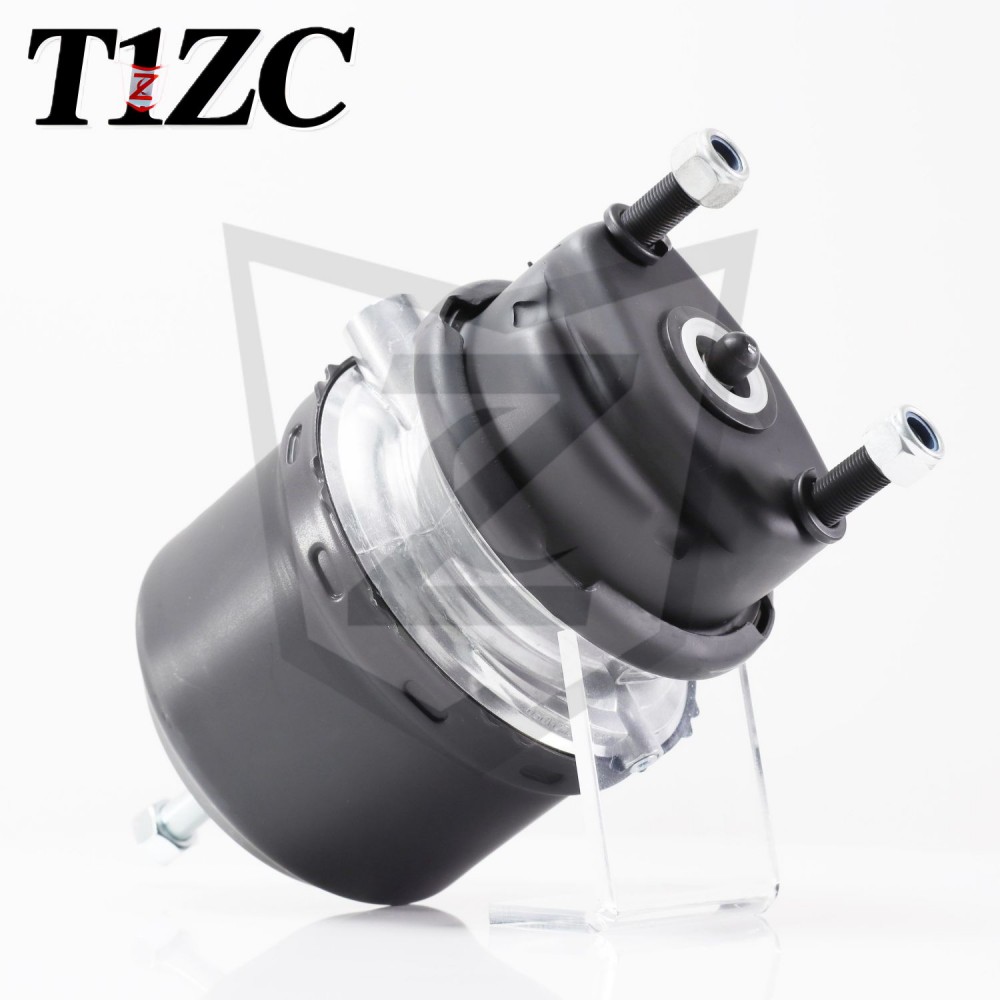

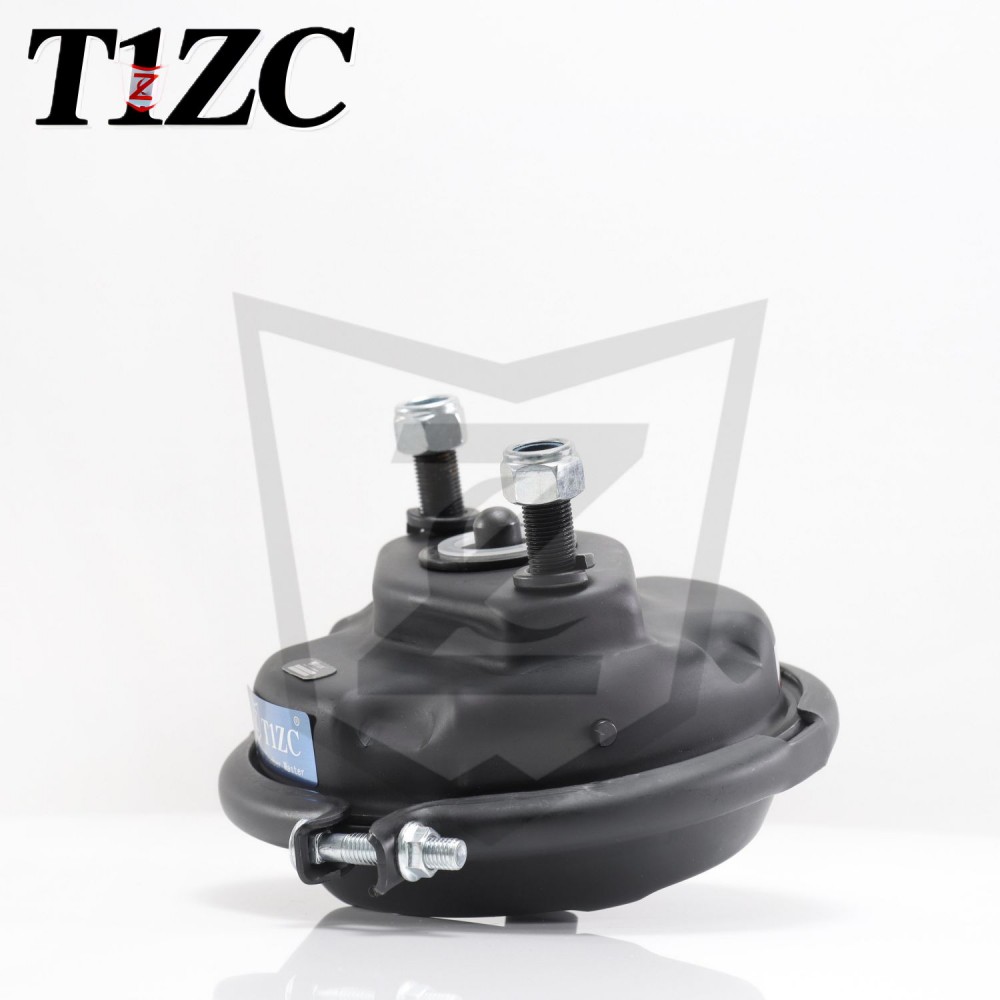

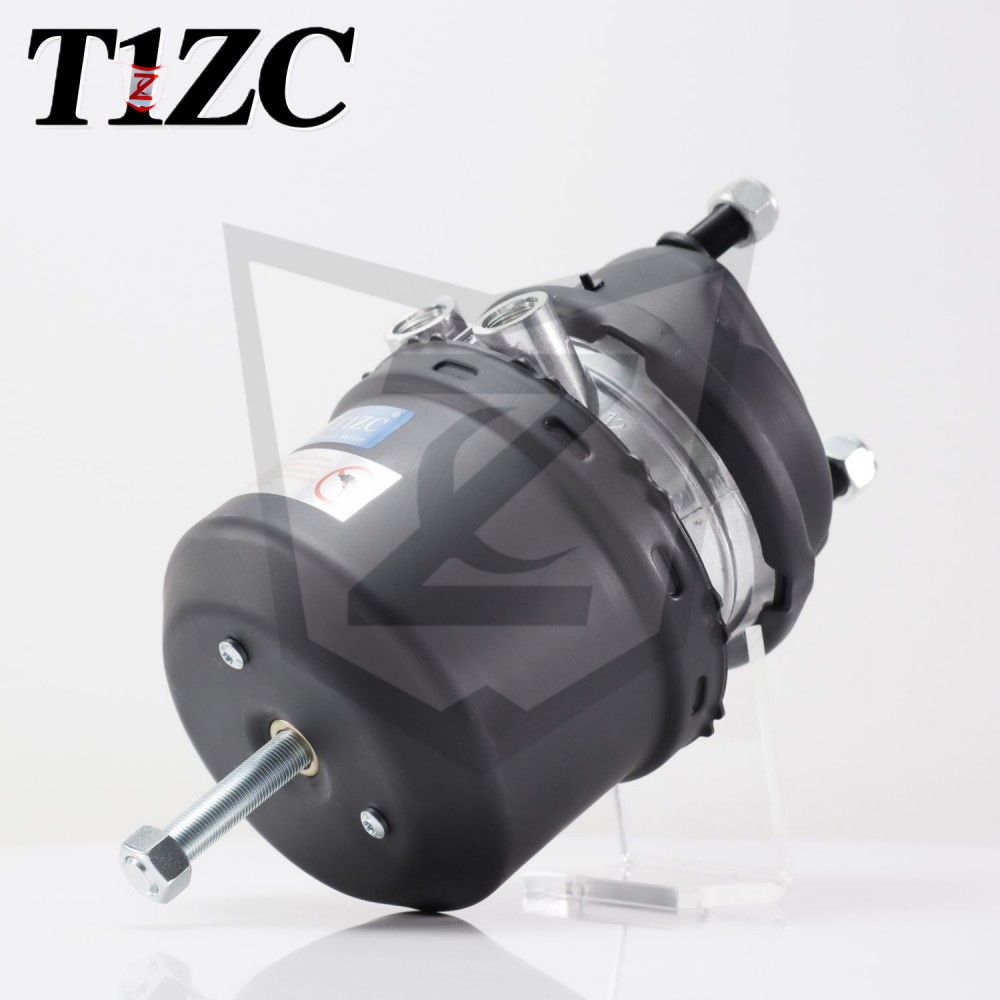

Inner Release Brake Cylinder

Inner Release Brake Cylinder is an air chamber designed to improve the performance of the brake system. It adopts an internal release mechanism to quickly release the brake pressure, thereby ensuring the efficient and stable operation of the system. The internal release design of the air chamber enables the brake to quickly return to normal working conditions, thereby improving the response speed and reliability of the brake system. Inner Release Brake Cylinder is widely used in heavy-duty commercial vehicles, especially under complex road conditions and high load conditions, and can provide drivers with a safer and more stable braking experience.
The product ensures that the brake air chamber can quickly release the brake pressure through the internal release function, providing instant response in emergency situations or frequent start-stop situations. Compared with the traditional external release mechanism, the internal release design reduces the time required for external operation and provides more precise pressure control, effectively reducing the system failure rate.

  • Inner Release Brake Cylinder
  • Inner Release Brake Cylinder
  • Inner Release Brake Cylinder
  • Inner Release Brake Cylinder
  • Inner Release Brake Cylinder
PREV   |   NEXT

+ Contact us

Product Description

Technical Features
Internal release design: The internal release mechanism can quickly release the brake pressure, provide a quick response to the vehicle in an emergency, and ensure driving safety.
High pressure and high temperature materials: The use of high pressure and high temperature resistant materials ensures that the brake air chamber can operate stably in extreme environments and extend its service life.
Enhanced braking performance: The precise internal release system design improves the rapidity and stability of the braking operation and optimizes the braking response speed.
Simplified installation and maintenance: The compact design and simple structure make installation more convenient, while reducing the difficulty of maintenance and the cost of use.

TYPE OE KNORR/WABCO PART NUMBER M α β F L VEHICLE
Q24/16P3 M16x1.5 0 180 6200 15
M22*1.5VOSS -90 90
9254612900 1516660 M16*1.5 -90 90 7400
9254612910 1525166 0 -45
Q20/24P3 M22*1.5VOSS 0 45 7900 15
9254800200 A0204205518 -10 -135 Mercedes
9254800340 A0204205718 58 -90
Q24/24P3 9254810800 M16*1.5 0 0 7900 15 SCANIA
9254812720 2021706 M22*1.5VOSS -90 90
9254810000 A0204204218 M22*1.5VOSS -10 -135 DAIMLER
9254812700 2021704   1686019 M22*1.5VOSS -40 90 SCANIA    DAF
9254610820   1443314   1686019 M16*1.5 -40 180
9254811700
9254610920   1443316   1686021 M16*1.5 0 90 SCANIA
9254811720
Q24/30P3 M22*1.5VOSS 0 45 10800 15
M 1481537 M16*1.5 -90 -45

OE Number:  9254612900; 9254800200; 9254810800; 9254810000; 9254613200
Suitable for:  MERCEDES; SCANIA; DAIMLER; DAF
The China brak...

Related products
Contact Us
  • Upload

About T1ZC
Zhejiang T1ZC Automobile Parts Company
Zhejiang T1ZC Automobile Parts Co., Ltd. is a China Inner Release Brake Cylinder Manufacturers and Inner Release Brake Cylinder oem/odm Factory. Located in Zhuji, Zhejiang Province, and founded in 2016, Zhejiang T1ZC Automobile Parts Co,. Ltd. is a comprehensive enterprise focusing on the research, development and manufacturing of brake chambers. The company has four professional production bases, namely T01, F02, M03 and Y04, forming a complete supply chain system from R&D, manufacturing to sales in the global market.
T01 is the headquarter, which is responsible for sales, R&D, quality management and the production of special models of brake chambers; the other factories are customised to produce high-quality brake chambers according to the demands of different market models.
T1ZC has been steadily expanding its global market, covering the OEM aftermarket in Africa, Europe, South America and other regions. With five independent production lines and advanced technical equipment, we have accumulated rich experience in handling complex orders and have experienced rapid business growth. The company also owns a number of independent patents, focuses on innovative research and development, and is committed to providing stable, reliable and high-quality Inner Release Brake Cylinder to customers around the world with efficient production and rigorous quality management.
