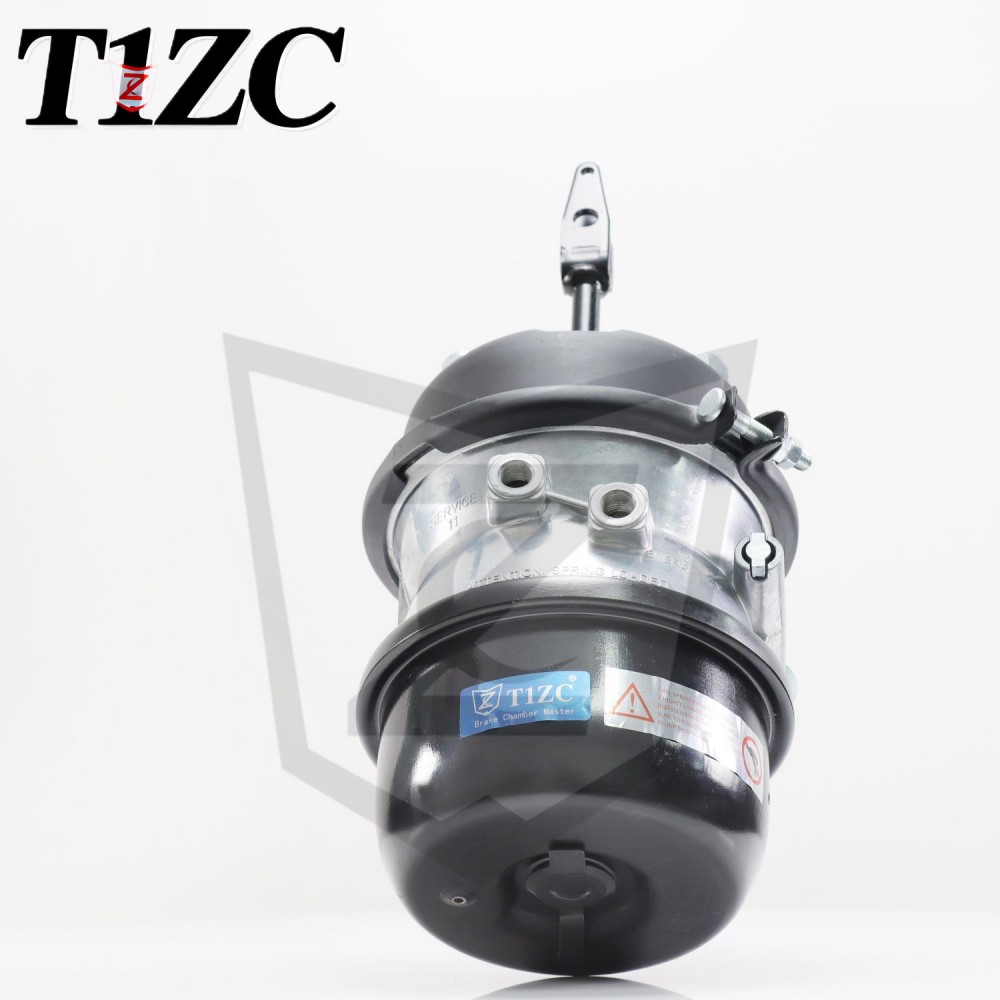

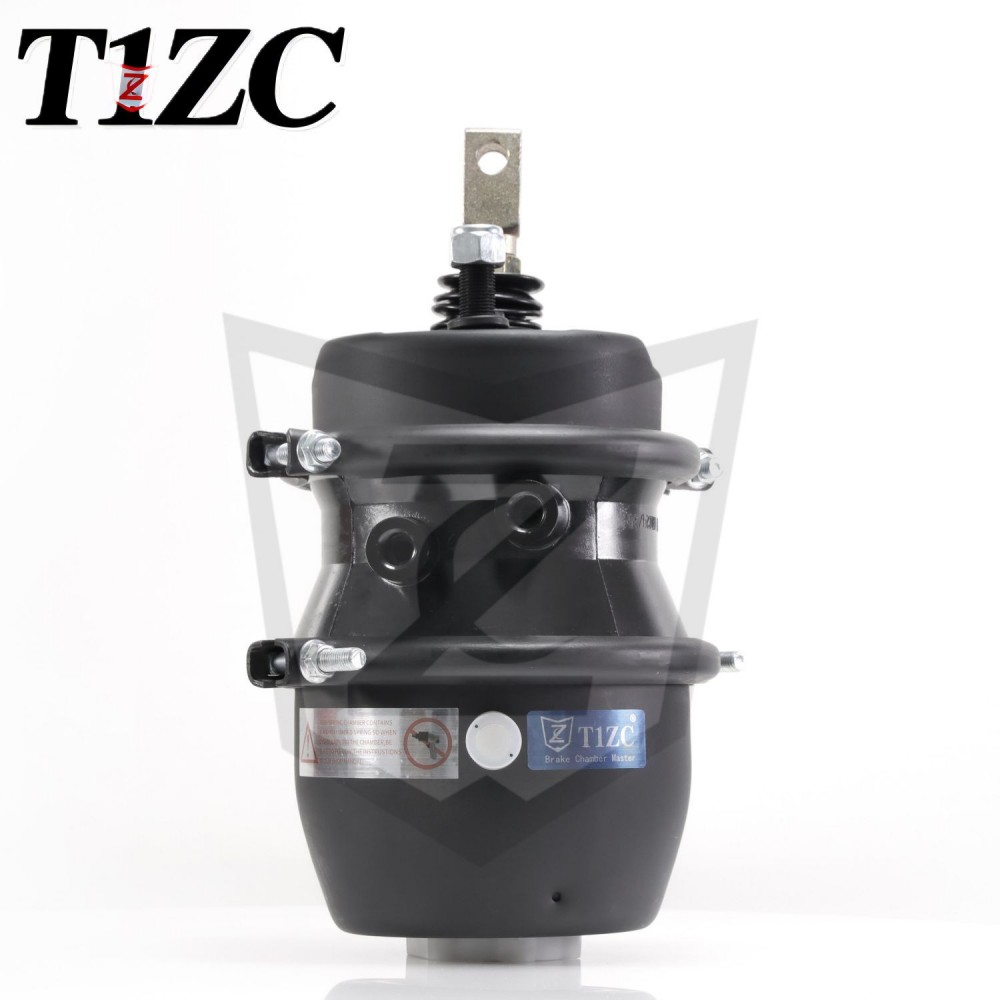

DD S-cam BrakeWhy is the DP S-cam brake chamber the core component of the heavy truck brake system?

In the complex mechanical system of heavy trucks, the brake system is directly related to driving safety and operational efficiency, and the DP S-cam brake chamber, as its core execution unit, carries the key mission of converting air pressure into mechanical force. This seemingly simple component is actually the "heart" of the vehicle's braking ability. Its design, performance and reliability directly affect the truck's braking response, stability and service life.
1. "Power amplifier" of pneumatic braking
The DP S-cam brake chamber is designed based on the principle of levers. It pushes the internal diaphragm or piston through compressed air to drive the S-shaped camshaft to rotate, and then drives the brake shoe to contact the brake drum to complete the braking action. This process uses air pressure as the power source, which can convert air pressure into powerful mechanical force within milliseconds to meet the inertial braking force requirements of heavy-duty trucks that easily weigh tens of tons. Compared with hydraulic or electronic brake systems, pneumatic brakes have become the preferred solution for heavy-duty commercial vehicles due to their high power density and overload resistance, and the DP S-cam air chamber is the solution with the highest technical maturity and the best cost-effectiveness.
2. Dual advantages of structural design
The unique structure of the DP S-cam brake air chamber gives it two core advantages: modular adaptability and fatigue resistance and durability. Its split design allows the push rod stroke and output force to be flexibly adjusted according to the axle load, vehicle model and usage scenario, and adapts to S-cam axles and brake drums of different specifications, significantly reducing the R&D and maintenance costs of car companies. At the same time, the air chamber uses high-strength alloy materials and multi-layer sealing technology, which can withstand extreme working conditions of -40℃ to 120℃, and can maintain stable performance in high temperature, vibration and dust environments generated by frequent braking. Taking Zhejiang T1ZC's DP S-cam product as an example, its patented sealing structure controls the leakage rate below 0.1kPa/min, far exceeding the industry standard, ensuring the precise transmission of braking force.
3. Industry Application and Technological Innovation
In the global commercial vehicle market, DP S-cam brake chambers have formed a highly standardized technology ecosystem. Its deep adaptability to drum brakes makes it a dominant player in heavy-duty fields such as long-distance freight and construction machinery. Leading manufacturers, represented by Zhejiang T1ZC, are continuously breaking through the performance boundaries of air chambers through technological innovation: for example, the "intelligent temperature control coating" technology developed by its T01 base reduces the friction interface temperature through nanomaterials, increasing the braking efficiency by 15%; while the automated production line of the F02 factory uses laser welding technology to extend the fatigue life of the air chamber shell to more than 2 million cycles, fully meeting the needs of harsh scenarios such as mines and deserts.
4. The global value of a reliable supply chain
As a leading company in the field of brake chambers in China, Zhejiang T1ZC has built a vertically integrated system from R&D to delivery based on four specialized production bases (T01, F02, M03, and Y04). The T01 headquarters focuses on the development and quality control of special vehicle air chambers, while other factories customize production for regional markets such as Africa and South America to ensure that products meet local certification standards. With five fully automatic production lines and independent patented technology, T1ZC's DP S-cam air chamber has passed the EU ECE R90 certification, providing zero-error delivery and full life cycle services to global customers, and becoming a long-term partner of Daimler, Scania and other automakers. How does the sealing of the chamber affect the braking efficiency?
